Key Takeaways
- Inverter surge capacity is the short burst of power an inverter can push above its rated watts, usually for a few milliseconds up to a couple of seconds.
- Motors in pumps, fridges and non-inverter ACs pull 3 to 7 times their running current at the instant they start, and that inrush is what trips undersized inverters.
- Low-frequency transformer inverters typically surge to about 3x rated power; compact high-frequency units often manage only 1.5x to 2x.
- Size for the worst-case moment: add the biggest motor's starting watts to whatever else is already running, then match that to the surge rating, not the continuous rating.
- Soft starters, VFDs and inverter-type appliances cut inrush sharply and let a smaller inverter run a bigger pump or AC.
The first time I watched a brand-new 3 kW hybrid inverter click off the second a client's borewell pump kicked in, I learned that rated watts tell you only half the story. The pump was a 1 HP unit that "should" have fit easily. What killed it was inverter surge capacity, or rather the lack of it. For a fraction of a second that motor demanded far more than its running load, the inverter saw an overload, and its protection did exactly what it was designed to do. If you run a pump, a fridge or an older air conditioner on solar, this is the spec that decides whether your system works or nags you with trips.
What surge capacity actually means
Every inverter has two power numbers that matter here. The continuous or rated power is what it can deliver all day without complaint. The surge or peak power is a short overload it tolerates for a defined window, then it either recovers or shuts down to protect itself.
That window is the part people miss. A datasheet might say something like "5000 W surge for 5 seconds" or "2x rated for 20 ms." Both are surge ratings, but they behave completely differently in your home. A short 20 millisecond burst helps with a quick capacitor charge; it does almost nothing for a motor that needs a full second to spin up. So you are really reading two things: how much extra power, and for how long.
Rated power keeps the lights on. Surge power gets the motor moving. Confuse the two and you buy an inverter that looks big enough on paper and still trips the moment something heavy starts.
Why motors hit your inverter so hard

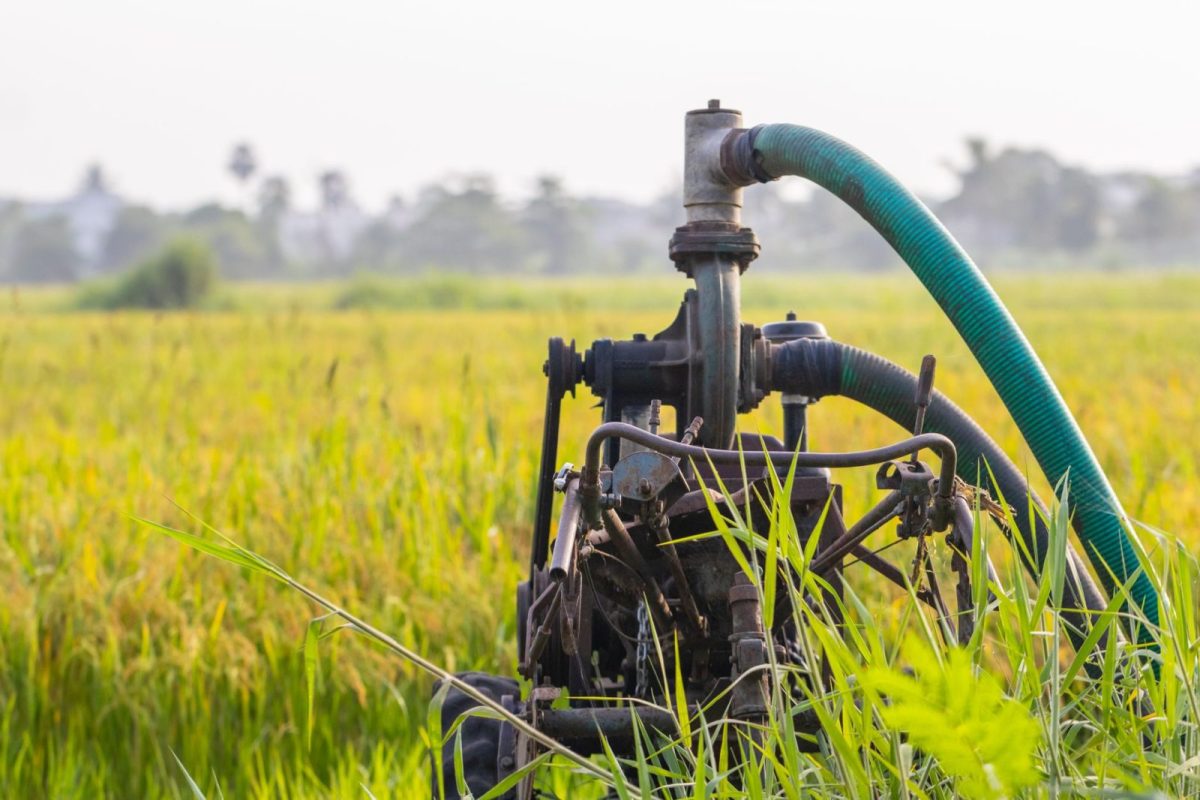

A resistive load like an LED bulb or a geyser element draws the same current from the first millisecond. A motor does not. At the instant of starting, the rotor is stationary and the winding looks almost like a short circuit to the supply. An induction motor can pull 3 to 7 times its running current in that first fraction of a second, and it stays well above normal for a second or two until it reaches speed.
This is called inrush current, or locked-rotor current on the nameplate. A 1 HP single-phase pump that draws around 750 watts while running can momentarily demand 2500 watts or more at startup. A non-inverter 1.5 ton air conditioner can spike past 5000 watts for that first second even though it settles around 1500 watts. Your inverter has to survive that spike, not just the steady load.
The US Department of Energy notes that motor-driven appliances routinely need three or more times their running wattage to start, which is why appliance energy estimates separate starting load from running load. Ignore that distinction and your sizing math will be wrong every time.
Running watts vs starting watts: the numbers
Here are the loads I see trip Indian home inverters most often. Treat the surge column as a planning figure, not a guarantee; your exact motor and its age will vary.
| Appliance | Running watts | Typical starting surge | Notes |
|---|---|---|---|
| Ceiling fan | 60-75 W | Negligible | Electronic/BLDC fans barely surge |
| Refrigerator (single door) | 120-180 W | 600-900 W | Compressor cycles on and off all day |
| 0.5 HP water pump | 350-450 W | 1200-1800 W | Common overhead tank pump |
| 1 HP water pump | 700-800 W | 2200-3200 W | Surface or shallow well |
| 1 HP submersible/borewell | 900-1100 W | 3000-4500 W | Higher inrush due to load and depth |
| 1.5 ton AC (non-inverter) | 1400-1600 W | 4500-6000 W | Fixed-speed compressor starts hard |
| 1.5 ton AC (inverter type) | 900-1400 W | 1200-1600 W | Soft ramp, almost no spike |
| Washing machine | 350-500 W | 1000-1400 W | Spin cycle is the peak |
Notice the pattern. The inverter-type AC and the BLDC fan barely surge at all, while the old fixed-speed compressor and the borewell pump are the troublemakers. That single row difference between a non-inverter and an inverter AC can decide whether you need a 3 kW or a 5 kW inverter.
How to read surge specs on a datasheet
Not all inverters surge equally, and the difference comes down to their internal design. This is where reading the spec sheet carefully saves you real money.
Low-frequency vs high-frequency inverters
Low-frequency inverters use a heavy iron transformer. They are bulky and cost more, but that transformer stores energy and shrugs off big motor starts, often surging to about 3 times rated power for several seconds. High-frequency inverters are light and compact and dominate the modern hybrid market, but many manage only 1.5x to 2x rated power, and only for a fraction of a second.
Neither is wrong. If your loads are lights, fans, TV and an inverter AC, a high-frequency unit is perfect. If you must start a 1 HP borewell pump on backup, a low-frequency inverter or a much larger high-frequency one earns its price. While you are comparing datasheets, also glance at the efficiency figures; I break down what those mean in my note on inverter efficiency ratings, because a unit that surges well but wastes power at low load costs you every day.
One more habit worth building: check the surge duration and the operating temperature together. Surge ratings shrink as the inverter heats up, and outdoor units in an Indian summer run hot. If yours lives outside, its enclosure sealing matters too, which I cover in the guide on inverter IP ratings and weatherproofing.
Tip: kVA is not watts
Indian inverters are often rated in kVA. A "2 kVA" inverter at a power factor of 0.8 delivers only about 1600 continuous watts. Motors also run at a poor power factor, so a nameplate that looks generous in kVA can be tighter in real watts than you expect. Always convert to watts before you compare against your appliance loads.
A worked sizing example
Say you want your solar backup to run a fridge, four fans, a few LED lights, and to start a 1 HP surface pump when needed. Here is the method I use on site.
- Add up the continuous running load with everything on: pump 750 W, fridge 150 W, four fans 300 W, lights 100 W. That is about 1300 running watts.
- Find your single largest starting surge. Here it is the 1 HP pump at roughly 2500 W.
- Assume the worst moment: the pump starts while everything else is already running. Peak demand is 2500 W (pump start) plus the fridge, fans and lights already drawing about 550 W, so around 3050 W for a second.
- Match the continuous rating to step 1 with headroom: a 2.5 kW to 3 kW continuous inverter comfortably covers 1300 running watts.
- Match the surge rating to step 3: you need a surge capacity of at least 3000 W. A 3 kW high-frequency inverter surging to 2x (6000 W) clears it; a 3 kW unit surging only to 1.5x (4500 W) still works, but a 2 kW unit at 1.5x (3000 W) leaves no margin and will nuisance-trip.
In rupee terms, the honest way to think about it is that spending a little more on surge headroom, maybe ₹8,000 to ₹15,000 for the next size up, is far cheaper than a pump that will not start when your overhead tank runs dry at 6 am. If backup runtime for these loads is your real goal, weigh the whole picture the way I did when comparing a solar battery versus a diesel generator for backup.
Ways to cut the starting surge
If your surge numbers are tight, you have two choices: buy a bigger inverter, or reduce the inrush itself. The second option is often cheaper and smarter.
- Soft starter: a small device that ramps voltage to a motor over a second or two, cutting inrush by roughly half. Ideal for a fixed AC compressor or a pump you cannot replace.
- Variable frequency drive (VFD): for pumps, a VFD starts the motor gently and can also save water and energy. It costs more than a soft starter but does more.
- Choose inverter-type appliances: an inverter AC or a BLDC pump barely surges at all, as the table above shows. When you replace an old unit, this is the easiest win.
- Stagger your loads: avoid programming the pump timer and the washing machine to start at the same minute. Manual habit, zero cost.
Warning: leave motor and mains wiring to a professional
Wiring a soft starter, a VFD or a pump onto your inverter output involves live mains voltage and, on the solar side, DC that stays energised in daylight. Both can injure or kill. Size and plan the system yourself, but have a qualified electrician make the final connections and confirm the earthing. Do not open a running inverter or probe DC terminals to "check" a surge.
The Institute of Electrical and Electronics Engineers publishes motor-starting standards that soft starters and VFDs are built around; the practical takeaway for a homeowner is simply that gentler starting is well understood engineering, not a gimmick. You can read the plain-language basics of motor loads on the National Renewable Energy Laboratory resources too.
Frequently Asked Questions
How much surge capacity do I need over my running load?
A safe rule for homes with motors is a surge rating of at least three times your single largest motor's running watts, added on top of whatever else runs at the same time. If you have no motors, twice your continuous load is plenty of margin.
Why does my inverter trip only sometimes when the pump starts?
Surge headroom shrinks as the inverter warms up and as your battery voltage sags. On a cool morning with a full battery it may cope; on a hot afternoon with a half-full battery the same pump start pushes it over the limit and the protection trips.
Is a bigger inverter always the answer?
Not always. A larger inverter idles at higher standby draw and costs more up front. If a soft starter or an inverter-type appliance removes the surge problem, a right-sized inverter is cheaper to buy and more efficient to run every day.
Does surge capacity matter for grid-tied solar without a battery?
Less so, because a grid-tied inverter feeds the grid rather than starting your loads directly; the grid handles inrush. Surge capacity becomes critical the moment you add battery backup or go off-grid, where the inverter alone must start your motors.
Can I run a 1.5 ton AC on a 3 kW inverter?
An inverter-type 1.5 ton AC, yes, comfortably, because it ramps up softly. A non-inverter fixed-speed AC is risky on 3 kW because its startup can spike past 5000 W. Add a soft starter, or step up to a low-frequency or larger inverter.
Getting your sizing right
Surge capacity is the quiet spec that separates an inverter that just works from one that embarrasses you every time the pump kicks in. List your motor loads, find the biggest starting surge, add the rest of what runs alongside it, and buy for that peak moment rather than the calm average. Do that and you will never watch a fresh inverter click off at 6 am. For the full picture on choosing, sizing and living with these units, walk through my complete guide to solar inverters and match the surge rating to your own home before you spend a rupee.
